Description
Sinopec High Pressure Ashless 46 AW Zinc-free Hydraulic Oil is an antiwear lubricant blended using highly refined high-quality mineral oils, combined with a non-zinc, ashless additive system has been designed to meet the very stringent requirements of the Denison T6H20C test, for use in high-pressure and double pumps (piston pump and vane pump).
Sinopec High Pressure Ashless 46 AW Zinc-free Hydraulic Oil is bio friendly hydraulic fluid, suitable for accidental environmental exposure. Zinc-free (ZF) formula ideal where antifoaming hydraulic oil is necessary. Ashless Premium Hydraulic Fluids have an excellent anti-wear performance and are designed for manufacturing and environmentally sensitive applications that require hydraulic oils containing no metals. Ashless Hydraulic Fluid is available in multiple viscosity grades to comply with most industrial applications. All grades are formulated according to the ISO viscosity grade classification.
High cleanliness oil rated at ISO - 18/16/13 or NAS - 7
Non-Toxic/Non-Hazardous

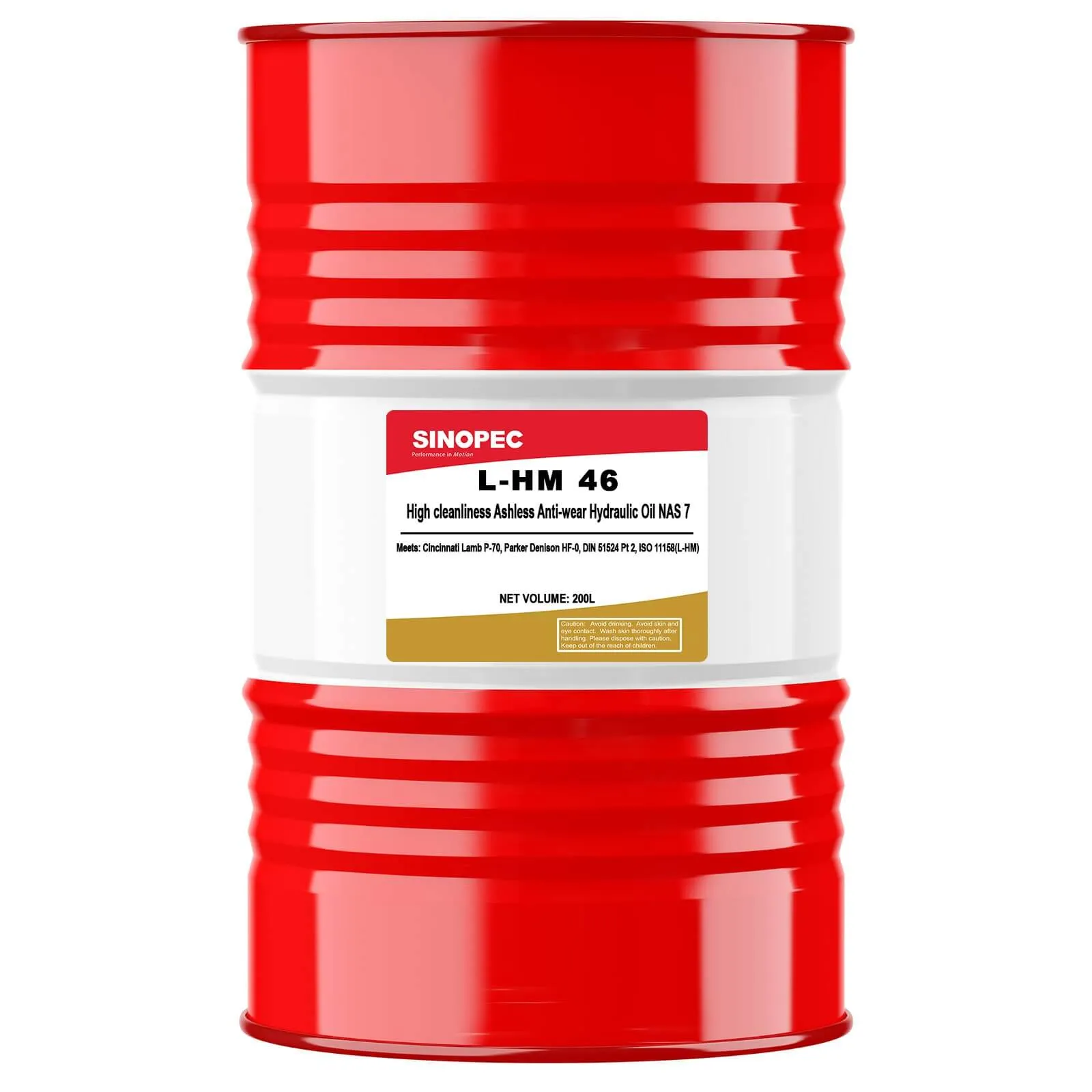

Pack Size: 55 Gallon Drum (200L Volume), Grade: ISO 46
Features & Benefits
Sinopec High Pressure Ashless 46 AW Zinc-free Hydraulic Oil is suitable for use in:
- Severe hydraulic applications, such as in vane pumps and/or piston pumps running under high-pressure conditions.
- High-precision hydraulic systems containing copper or silver components.
Features and benefits
The non-zinc, ashless antiwear additive system is non-corrosive to silver and yellow metal alloys, and so is fully compatible with hydraulic pumps containing either silver or copper components, thus prolonging pump life.
High-quality base oils combined with ashless additive technology provide outstanding antiwear properties, rust protection, low deposit formation, good demulsibility, oxidation resistance, good antifoam properties and fast air release properties, to protect and extend the life of hydraulic pumps and systems.
Good hydrolytic stability and filterability, ensure optimum product life and performance, and prevent filter blocking.
High viscosity index gives good viscosity characteristics over a wide temperature range; the wide selection of viscosity grades ensures that the optimum viscosity can be used for any hydraulic system operating temperature.
Fully compatible with common seal materials usually found in hydraulic systems, to extend seal life and prevent fluid leakage.
Specifications
Sinopec High Pressure Ashless 46 AW Zinc-free Hydraulic Oil Typical Data Specifications
| ISO viscosity grade (VG) | 46 |
Kinematic viscosity, ASTM D 445 |
|
| Viscosity index, ASTM D 2270 | 97 |
| Air release at 50℃, mins, ASTM D 3427 | 6 |
| Foaming characteristics, sequences 1, 2 and 3, ASTM D 892 | 10/0 |
| Neutralisation number, mg KOH/g, ASTM D 974 | 0.26 |
FZG test (A/8.3/90), fail load stage, DIN 51345 | 12 |
Rust prevention, ASTM D 665 | pass pass |
| Copper corrosion, 3 hours @ 100℃, ASTM D 130 | 1b |
| Water separability, ASTM D 2711 | 9 (54℃) |
| Pour point, ℃, ASTM D 97 | -15 |
| Flash point (COC), °C, ASTM D 92 | 235 |
Sinopec High Pressure Ashless 46 AW Zinc-free Hydraulic Oil meets or exceeds the performance requirements of the following industry specifications:
| DIN | 51524 Pt 2 (HLP) |
| ISO | 11158 (L-HM), ISO 4406:2017 18/16/13 (NAS 7) |
Sinopec High Pressure Ashless 46 AW Zinc-free Hydraulic Oil meets or exceeds the performance requirements of the following OEM specifications:
| Cincinnati | P-70 |
| Parker Denison | HF-0 |
Cross Reference
- Mobil DTE Excel 46
- Castrol Hyspin ZZ 46
- Shell Tellus S3 M 46
- Fuchs Renolin ZF 46
- Total Azolla AF 46
- Gulf Zinc Free Hydraulic 46
- Chevron Clarity Hydraulic Oil AW 46
- Phillips 66 Megaflow AW Hydraulic Oil 46
- Conoco Ecoterra 46
- Texaco Rando HD Ashless 46
- Also referred to as: AW 46 Hydraulic Oil, AW 46 Hydraulic Fluid, ISO VG 46 Hydraulic Oil, ISO VG 46 Hydraulic Fluid, ISO 46 Hydraulic Oil, ISO 46 Hydraulic Fluid, Grade 46 Hydraulic Oil, Grade 46 Hydraulic Fluid, SAE 15 hydraulic oil, ZF Hydraulic Fluid, Bio Hydraulic
